Features
Specifications
Dimensions
Features
OPERATIONS: Lever, Gearbox and Actuator
MATERIALS OF CONSTRUCTION
Body: Wafer available in Cast iron, Ductile Iron, Cast Steel, Stainless Steel
Disc: Nickel-plated, Bronze and CF 8M(316), Stainless Steel
Protection: Epoxy powder coated body
Stem: Stainless Steel
Liner: EPDM (Ethylenepropylene Terpolymer)/NBR vulcanised
Operation: Hand lever, Gearbox, Actuator
Tested: SABS, JASWIC, BSS 155 compliant
Lugged: Semi or Fully
Pressure: 1 600 kPa (16 Bar)
O-Ring: NBR, EPDM (Ethylenepropylene Terpolymer)

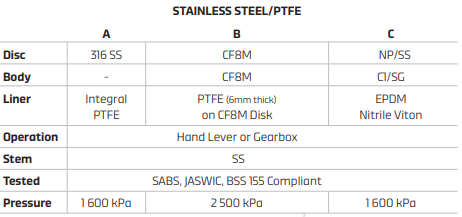

Specifications

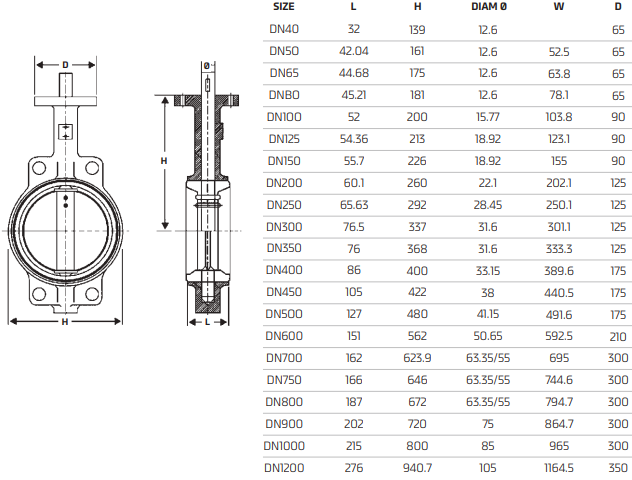

Dimensions
